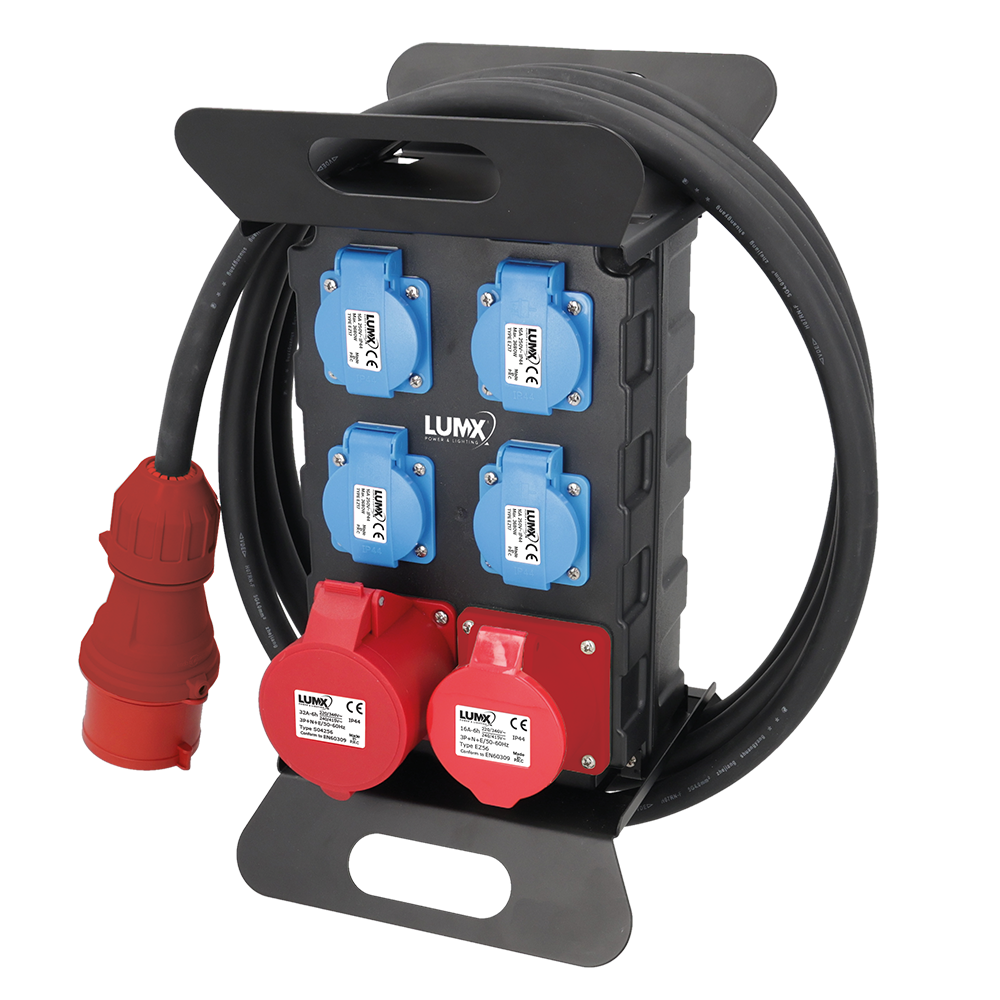

Distribution Box - 400V
with fuses, 12800 Watt (BE/FR).
![](https://lumx.be/wp-content/uploads/2023/06/LM47954_Picture-1024x888.jpg)
Characteristics
This distribution box has 6 outputs. It is handy and robust. Made of shock-resistant polyamide. It is also splash resistant. Thanks to the handle, the distribution box can be easily moved.
The box is supplied fully wired and ready to use.
INPUT
1 x CEE 32A – 5P – 400V.
![](https://lumx.be/wp-content/uploads/2018/04/LM47117_detail1-1.jpg)
1 x CEE 32A - 5P - 400V
![](https://lumx.be/wp-content/uploads/2023/06/LM47954_1.png)
1 x CEE 32A – 400V / 1 x CEE 16A – 400V
![](https://lumx.be/wp-content/uploads/2023/06/fre_be_aansluiting.png)
4 x CEE 16A – 250V
OUTPUTS
The distribution box has 6 outputs:
➜ 1 x CEE 32A – 400V
➜ 1 x CEE 16A – 400V
➜ 4 x CEE 16A – 250V
➜ Max 12800W
![](https://lumx.be/wp-content/uploads/2023/06/Naamloos-10.png)
16A + 20A
Specifications
All features of this electricity product can be found below.
- code
- LM 47986
- afmetingen
- 350 x 250 x 180 mm
- Cable Type
- H07RN-F / 5G 4 mm2
- Cable Length
- 4 m
- INPUT
- 1 x CEE 32A - 5P - 400V
- OUTPUTS
- 400V (1 x 32A - 1 x 16A)
4 x 230V (BE/FR)

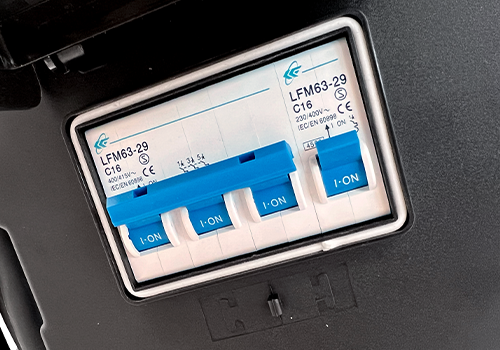

- fuses
- 16A + 20A
- plugs
characteristics
