Distribution Box - 230V
Max 3680W - LM 47920
Characteristics

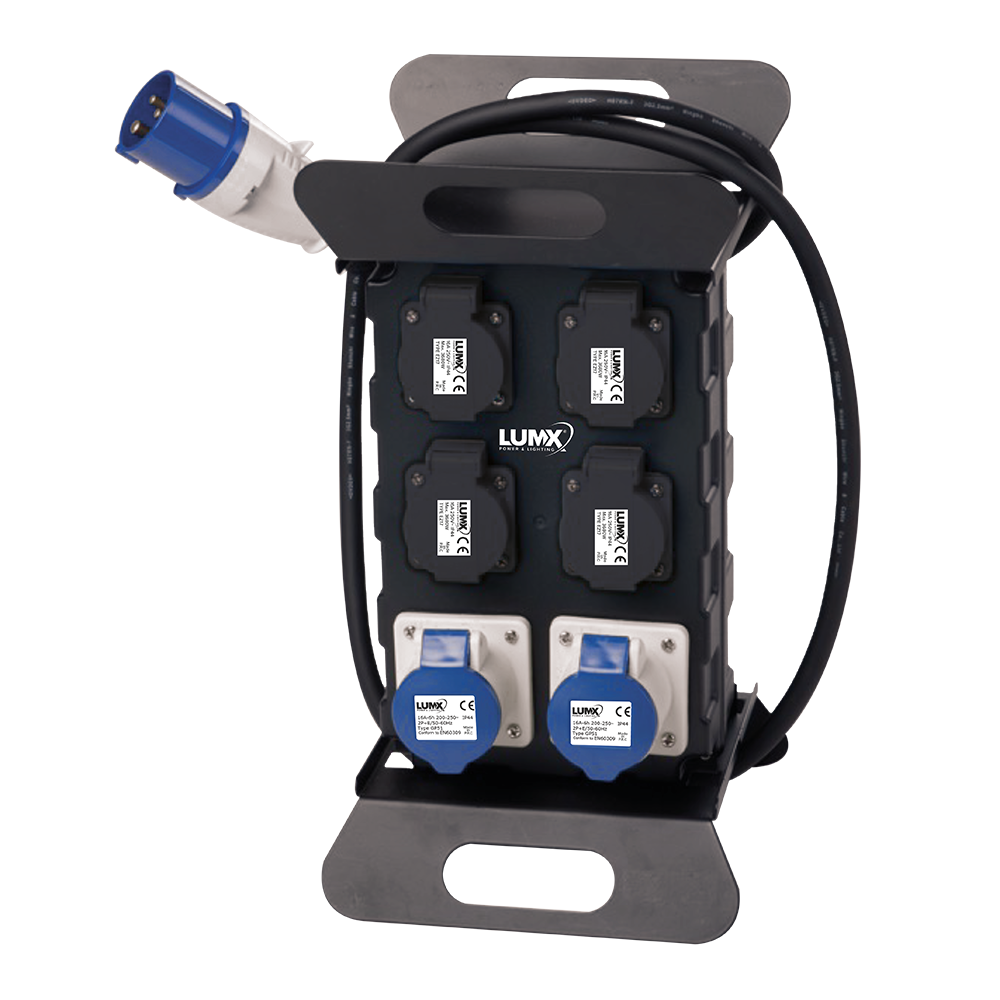

This distribution box has 6 outputs. It is handy and robust. Made of shock-resistant polyamide. It is also splash resistant. Thanks to the handle, the distribution box can be easily moved.
The box is supplied fully wired and ready to use.

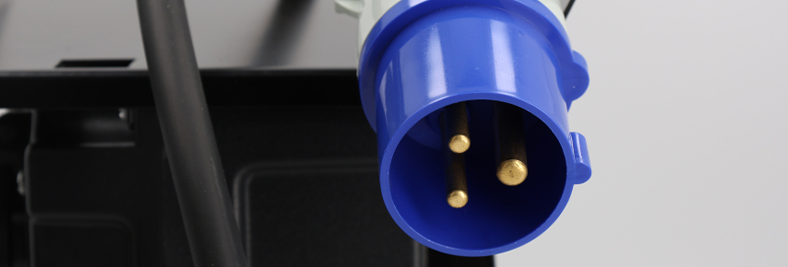

INPUT
1 x CEE 16A – 5P – 400V.
1 x CEE 16A - 5P - 400V
16A - 2P+E
4 x CEE 16A – 230V ( FR/BE )

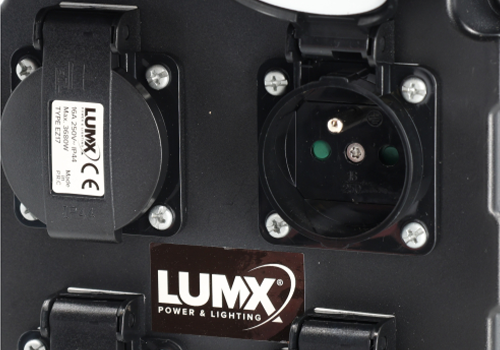

OUTPUTS
The distribution box has 6 outputs:
➜ 2 x CEE 16A – 230V
➜ 4 x CEE 16A – 230V
➜ Max 3680W
Specifications
All features of this electricity product can be found below.
- code
- LM 47920
- Dimensions
- 208 x 194 x 362 mm
- Cable Type
- H07RN-F / 3G 2,5 mm2
- Cable Length
- 2 m
- INPUT
- 1 x CEE 16A - 2P + E
- OUTPUTS
- 2 x 230V (16A)
4 x 230V (FR/BE)
- plugs
characteristics
